Tube vs Tape and Reel Packaging
This article compares tube vs tape and reel packaging. By the time you have finished reading you should have a good understanding of the costs and benefits of each of these packaging options. So, read on to find out more about these two industry standards and truly understand the ins and out of tape and reel vs tube packaging for electronics, and semiconductor devices.
The Key Differences Between Tube vs Tape and Reel Packaging :
Tube packaging and tape and reel packaging both protect electronic components, but they are used for different production needs.
Tube packaging is best used when component quantities are lower and flexibility matters more than automation.These applications include lower-volume work, prototyping, manual handling, or components that are commonly supplied in stick magazines.
Tape and reel packaging is usually the better fit for automated SMT production because it supports continuous feeding, higher component counts, and faster pick-and-place operation. Tape and reel is best suited for when components need to move through automated assembly equipment with fewer interruptions, better feeding consistency, and a stronger production readiness.
The Key Differences OF Tube Packaging Vs. Tape And Reel Packaging

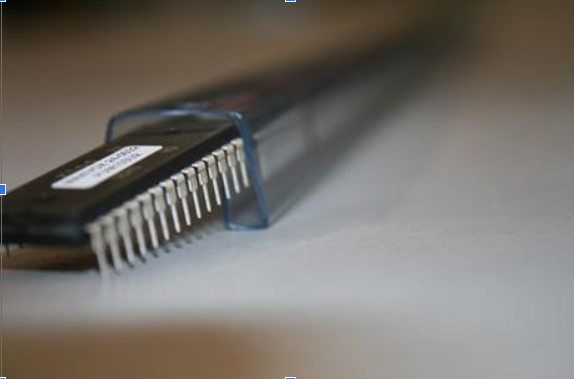

Tube packaging, or "Stick magazine" packaging, came into fruition early in the life of IC manufacturing. They are hard plastic packaging tubes for electronic components that allow for several components to stack atop one another. These tubes are also stackable themselves, allowing for them to ship with the least amount of wastage tape and reel process.
Tube packaging is commonly used to hold components in anti-static plastic tubes. This format can offer strong physical protection and can be practical when a manufacturer only needs a smaller number of parts, when parts will be handled manually, or when a production setup is not built around continuous reel feeding.
The main difference is how the components are presented to production equipment. Tube packaging holds components in a stick-style format, while tape and reel places components into pockets on a paper or plastic carrier tape that is wound onto a reel. That reel format is what allows tape and reel to support longer, more continuous automated feeding.
What is Tube Packaging Used For?
The design of these long magazines allows them to transport many electronic components more safely. They have insulation from damage due to the design of the reel.
Tube packaging is often used for prototyping, low-volume production, repair work, engineering builds, and applications where hand placement or smaller batch handling is acceptable.
Tube packaging is useful when the priority is only component protection and keeping upfront costs low for smaller quantities. It becomes less ideal if high speed automated assembly is needed. This is because tubes usually hold fewer components than reels. Because of this they can require more frequent loading or swapping during protection.
Manufacturers can also feed these components straight into automatic-placement tape and reel packaging machines. This helps when mounting the components onto PCBs and other integrated circuits. Thus, device programming becomes quick and easy.
However, even when tube-fed equipment can be used, tube packaging usually does not offer the same continuous-feed advantage as tape and reel. For fast SMT lines, frequent tube changes or lower part capacity can slow production compared to components supplied on a properly prepared reel.
Tube packaging is often a good fit when:
Smaller component quantities are needed.
The job is for prototyping, testing, or repair.
The parts will be handled manually or semi-automatically.
The component type is commonly supplied in stick magazine format.
Lower upfront packaging cost matters more than automated throughput.
Frequent component loading will not create a production bottleneck.
Tape and Reel Packaging

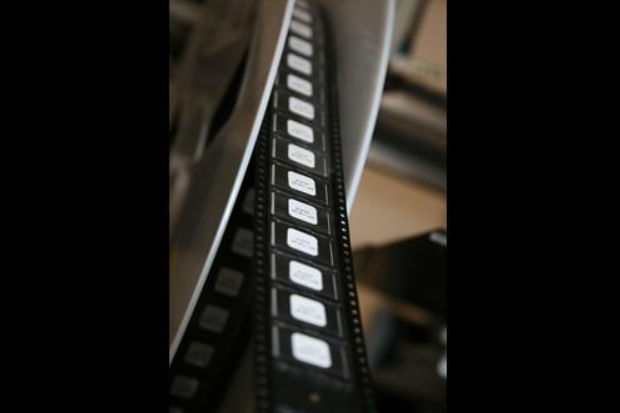

In tape and reel, any components are set into specially-designed pockets in a long piece of plastic tape (the "tape"). This tape is then sealed to keep components in place and wound around a central "reel". This method of packaging helps protect the components during storage from damage or dust.
Tape and reel packaging can use paper, polystyrene, or polycarbonate carrier tape formats depending on the component and production requirements. The correct carrier tape material, pocket size, and reel configuration will help protect components and keep them ready for automated SMT handling.
At ProEx, our tape and reel packaging is processed in accordance with EIA-481 and JEDEC packaging standards. This supports automated pick-and-place compatibility, and consistency of production.
What Is Tape and Reel Packaging Used For?
This type of packing helps a machine process feed components into machinery. You can then have assurances that the machine can feed them in faster and with more consistency. Tape and reel packaging also successfully prevents orientation errors in how the components enter the system.
Tape and reel is used when components need to be loaded into pick-and-place equipment for automated SMT production. Because the components are held in a continuous strip, the machine can feed parts with fewer interruptions than tube packaging usually allows.
Tape and reel is often the stronger choice when:
Production volume is high.
Automated SMT assembly is required.
Continuous feeding matters.
Less operator intervention is needed.
Component orientation and placement consistency are important.
The will job involve repeat production or longer runs.
The parts must arrive ready for automated equipment.
Tape and reel can also reduce production delays caused by frequent package swapping. While tubes may need to be replenished more often because they hold fewer components, reels are designed to carry higher component counts and prevent package swapping support longer automated runs.
Tube vs Tape and Reel: Key Decision Factors
When comparing tube vs tape and reel, the best choice depends on production speed, quantity, component type, cost, and how the parts will be handled before assembly.
Production Speed
Tape and reel is usually better for high-speed SMT production because it supports continuous feeding into automated pick-and-place equipment. This helps reduce interruptions and keeps production moving more consistently.
Tube packaging can work for lower-speed or lower-volume workflows, but it may require more frequent swapping or operator involvement when compared with reel-fed components.
Quantity
Tube packaging is usually the better choice for lower quantities, engineering samples, prototypes, or smaller sized production runs
Tape and reel is usually the better choice when higher component counts are needed. This applies especially when the job involves hundreds or thousands of parts moving through automated assembly.
Component Type
Tube packaging is often used for components that are larger, longer, or commonly supplied in stick magazine format.
Tape and reel is widely used for smaller surface-mount components and semiconductor devices that need to be presented consistently to automated SMT equipment.
Cost
Tube packaging may be a more cost-effective option for small orders because it can reduce upfront packaging and setup costs.
Tape and reel may cost more for smaller runs, but it becomes more valuable for higher quantities due to automated f
Standards
Tape and reel technology is the most reliable method of storing or transporting components. This even includes semiconductors and other fragile items.
Also, tube packaging is harder for manufacturing processes to make use of. Thus, tape and reel have sat at the forefront of packaging options for many years.
At present, the main packaging standard for tape and reel is set by the Electronic Industries Alliance (EIA). Their demands for how IC plastic packaging tubes get used are available online under EIA-481. Although, standards for shipping semiconductors via tape and reel do not differ from other tape and reel packaging.
For production environments, standards matter because automated equipment depends on consistent tape dimensions, reel configuration, component orientation, and packaging quality. ProEx processes tape and reel orders in accordance with EIA-481 and JEDEC packaging standards to help support automated SMT compatibility.
Production-ready tape and reel packaging should also account for inspection, ESD-safe handling, carrier tape material, component geometry, and whether the parts need to arrive ready for downstream assembly.
How ProEx Supports Production-Ready Tape and Reel Packaging
ProEx provides full-service tape and reel packaging designed to help components move from bulk packaging to a format that is easier to inspect, handle, load, and use in automated assembly.
ProEx tape and reel support includes:
EIA-481 and JEDEC-aligned processing.
Paper, polystyrene, and polycarbonate carrier tape formats.
Custom tooling for unique or non-standard component geometries.
Automated 2D and 3D inspection and reporting.
ESD-safe handling in an ISO 9001-certified facility.
Standard turnaround of three business days or less, with both rush and same-day options available depending on the order size and scheduling.
Automated taping equipment, including AATEC SA Lisa Spider systems and V-TEK Inc. TM-500 systems, supporting high-throughput processing depending on component size and configuration.
These capabilities matter because tape and reel is not only about putting parts on a reel,but also about preparing components for a smoother and more controlled production process.
Key Takeaways:
Tube packaging is usually best for low-volume production, prototyping, repair work, or manual assembly where smaller quantities and physical protection are more important than continuous machine feeding.
Tape and reel packaging helps machines feed components into production equipment faster.
Tape and reel packaging is usually best for high-volume automated SMT production because it supports continuous feeding, higher component counts, fewer interruptions, and more consistent pick-and-place operation.
The Electronic Industries Alliance sets the standard for packaging under EIA-481.
EIA-481 and JEDEC-aligned tape and reel packaging helps support automated SMT compatibility, consistent handling, and production-ready component delivery.
